Wear plate for ball mill

Ball mills are highly efficient grinding machines designed for various industrial processes, including mineral dressing, paint production, pyrotechnics, ceramics, and selective laser sintering. Their operation is based on the principles of impact and attrition. As the grinding balls fall from near the top of the rotating shell, they collide with the materials, reducing their size.

The structure of a ball mill features a hollow cylindrical shell that rotates around a horizontal or slightly inclined axis. The shell is partially filled with grinding media, typically balls made of steel (such as chrome steel), stainless steel, ceramic, or rubber. To resist abrasion, the inner surface of the shell is often lined with materials like manganese steel or rubber. Rubber linings are particularly advantageous as they significantly reduce wear and extend the mill's service life. Generally, the length of the mill is approximately equal to its diameter.

In continuously - operated ball mills, the material to be ground is fed through a 60° cone on the left side, and the ground product is discharged via a 30° cone on the right side. As the shell rotates, the grinding balls are lifted on the rising side and then cascade down from near the top, repeatedly striking the material. This continuous process reduces the solid particle sizes through impact and attrition.

Ball mills are extremely versatile. They can grind a wide range of materials, such as coal, pigments, and feldspar for pottery. Grinding can be done either wet or dry, with wet grinding usually occurring at lower speeds. For example, rubber balls in ball mills are used in the blending of explosives. Additionally, ball milling has been effective in enhancing solid - state chemical reactivity in multi - component systems and producing amorphous materials.

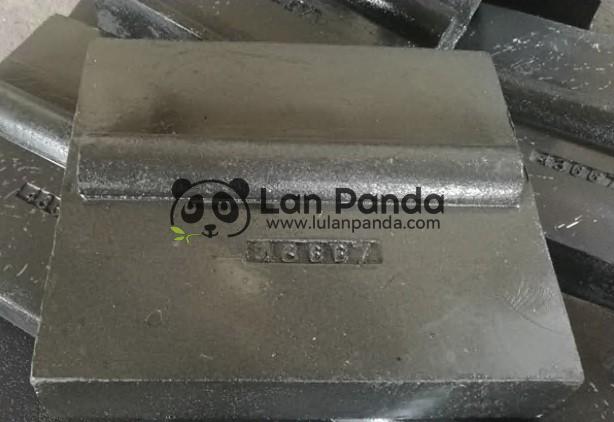

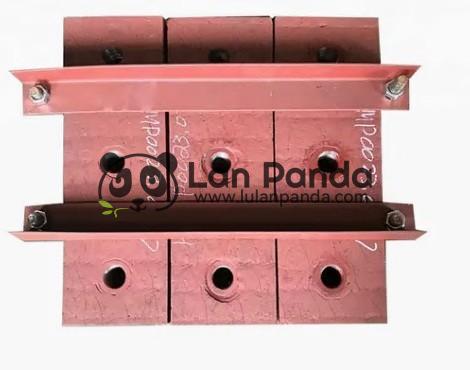

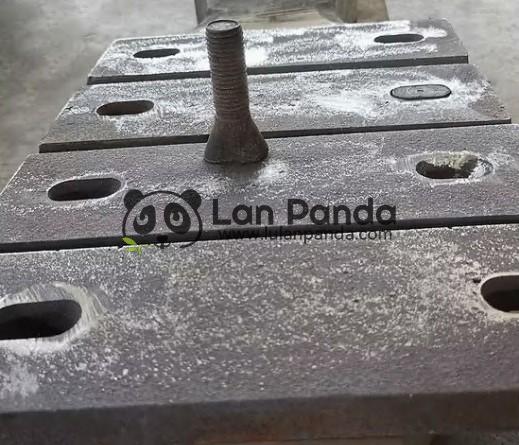

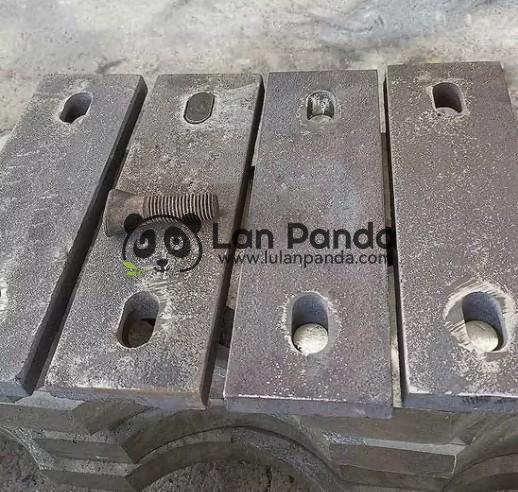

LulanPanda is a specialist in supplying high - quality manganese steel and high chromium alloy wear plates for ball mills. These wear plates are designed to withstand harsh conditions, offering excellent resistance to abrasion and impact. Manganese steel wear plates are known for their high hardness and durability, making them ideal for heavy - duty grinding. High chromium alloy wear plates, on the other hand, provide excellent corrosion resistance and are suitable for chemically reactive environments. Both types of wear plates are designed to optimize the efficiency and lifespan of ball mill operations.
