Crushers Product Introduction

At LulanPanda, we take pride in specializing in the sale of the much - lauded RH series cone crushers. These crushers have earned a stellar reputation for their extraordinary performance and impressively low total cost of ownership. Through meticulous engineering, they are crafted to offer unparalleled crushing efficiency, ensuring top - notch productivity across a vast array of applications.

Beyond supplying the crushers themselves, LulanPanda offers an extensive selection of high - quality, budget - friendly wear parts. These parts are the linchpin in maintaining the crushers in prime working condition, slashing downtime and supercharging operational efficiency.

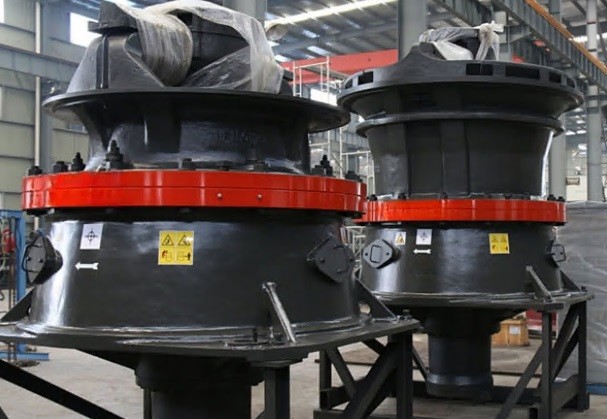

The RH Series Cone Crushers

The RH series cone crushers are built like tanks to withstand the most brutal conditions. Let's delve into the machine components and their distinct features:

1. Feed Hopper: The feed hopper is ingeniously designed to enable a seamless and steady flow of material into the crusher. This design not only guarantees efficient operation but also significantly reduces the risk of blockages.
2. Hydraulically Adjusted Gyratory Cone Crusher: This crusher boasts a robust crushing chamber with a two - arm design top shell. The top shell comes equipped with replaceable arm shields and a spider cap, which not only boost durability but also make maintenance a breeze.
3. Rigid Three - Arm Design Bottom Shell: The bottom shell is constructed with a rock - solid three - arm design, featuring replaceable arm shields and inspection hatches. This design ensures long - term, reliable performance and simplifies inspection and maintenance procedures.
4. Motor - Driven Hydraulic Control System: The crusher is outfitted with a motor - driven hydraulic control system, complete with push - button hydraulic setting control and an accumulator for protection against un - crushable objects. This system allows for rapid and precise adjustments, enhancing both operational flexibility and safety.
5. Automatic Lubrication System: An advanced automatic lubrication system is integrated into the crusher, featuring a separate oil tank unit with two immersion oil heaters. This system ensures consistent and reliable lubrication, minimizing wear and extending the lifespan of the crusher components.
6. Bottom Shell Side Liners: The side liners of the bottom shell are made from highly wear - resistant steel plates, providing excellent protection against abrasion and significantly prolonging the service life of the crusher.
7. Rubber Compression Mountings: These mountings are engineered to absorb vibrations, reducing noise levels and minimizing the transmission of vibrations to the surrounding structure. This feature not only enhances operator comfort but also safeguards the crusher from potential damage caused by excessive vibrations.
8. V - Belt Drive: The crusher is equipped with a V - belt drive system, including a crusher side pulley, motor side pulley, and V belts. This system ensures efficient power transmission and reliable operation.
9. Over Pressure Dust Seal: The over - pressure dust seal consists of a blower with an air filter, a 5 - meter hose for connection to the crusher, and connection fittings. This system effectively prevents dust ingress, protecting the crusher's internal components and maintaining optimal performance.
10. Air Conditioner Oil Heat Exchanger: The oil heat exchanger is suitable for ambient temperatures below 55°C, ensuring that the crusher's lubrication system operates at optimal temperatures even in high - temperature environments.
11. Special Tools, Tool Box, and Manuals: The RH series cone crushers come with a comprehensive set of special tools, a tool box, and detailed manuals. These resources make installation, maintenance, and troubleshooting a piece of cake, ensuring smooth operation and minimizing downtime.

To sum it up, the RH series cone crushers are engineered to provide unrivaled performance, outstanding durability, and remarkable cost - effectiveness. Thanks to their cutting - edge features and high - quality components, they are the go - to choice for the most demanding crushing applications. LulanPanda's unwavering commitment to providing top - tier wear parts and exceptional customer support means that your crushers will stay in tip - top shape, delivering reliable performance year after year.

Diverse Varieties of Cone Crushers

In the ever - evolving landscape of mining technology, cone crushers have diversified into multiple distinct types to meet the wide - ranging needs of different operations. Here are the main types:

• Compound Cone Crusher (VSC Series): With its advanced design elements, the VSC series compound cone crusher is specifically tailored for applications that demand a combination of high - performance crushing and unique operational characteristics.
• Spring Cone Crusher: Known for its classic yet effective design, the spring cone crusher features a spring - based mechanism that is crucial for its operation and safety.
• Hydraulic Cone Crusher (Single Cylinder and Multi - Cylinder): These crushers utilize hydraulic systems, available in single - cylinder and multi - cylinder variants. The hydraulic operation allows for precise control of the crushing process, offering enhanced performance and flexibility.
• Gyratory Crusher: A staple in large - scale mining operations, the gyratory crusher is designed to handle massive volumes of material, providing continuous and efficient crushing.

Each type of cone crusher is carefully crafted to meet specific crushing requirements, offering distinct advantages in terms of performance, ease of maintenance, and overall operational costs.

The Inner Workings of Cone Crushers

The operation of a cone crusher shares some similarities with that of a gyratory crusher, but it has its own unique traits. It has a less steeply angled crushing chamber and a more prominent parallel zone between different crushing areas. The crushing process involves compressing rock between an eccentrically rotating spindle, protected by a wear - resistant mantle, and the surrounding concave hopper lined with manganese or a bowl liner. As the rock enters the top of the cone crusher, it gets trapped and compressed between the mantle and the bowl liner or concave. First, large ore chunks are broken, and then they move down to a lower position in the crusher for further crushing. This process repeats until the particles are small enough to pass through the narrow opening at the bottom of the crusher.

Benefits of Cone Crushers

Cone crushers are highly effective for crushing medium - hard and hard ores and rocks. Their benefits are numerous:

• Robust Construction: Built with durable materials and a solid design, cone crushers can withstand the rigors of continuous operation.
• High Productivity: Capable of processing large volumes of material in a relatively short time, they contribute to increased production levels.
• Simple Adjustability: Operators can easily modify the settings to achieve the desired particle size and output.
• Reduced Operational Costs: Their efficient design and reliable performance help in minimizing long - term operational expenses.

The spring release mechanism in cone crushers acts as a safeguard against overloads. It allows non - crushable tramp materials to pass through the crushing chamber without causing damage to the crusher, ensuring its long - term functionality.

Jaw Crushers: A Complementary Offering

In addition to our wide range of cone crushers, LulanPanda also offers jaw crushers. Jaw crushers are remarkable for their ability to achieve a crushing ratio of 4 - 6, resulting in uniformly shaped final products. These crushers are extremely versatile and can handle high - hardness, medium - hardness, and soft rocks and ores, such as slag, construction materials, and marble. They are mainly used for primary crushing in various industries, including mining, metallurgy, construction, road and railway building, environmental conservation, and the chemical industry.

The key features of jaw crushers include:

• Straightforward Structure and Easy Maintenance: Their simple design makes maintenance tasks relatively easy and less time - consuming.
• Steady Performance: Jaw crushers are known for their consistent operation, providing reliable results over extended periods.
• Uniform Final Particles and High Crushing Ratio: They produce evenly sized particles, and their high crushing ratio makes them efficient for primary crushing applications.

With a pressure resistance strength of up to 200Mpa, jaw crushers are perfectly suited for primary crushing jobs, guaranteeing efficient and reliable operation across a wide range of applications.
